MECOF 大型加工中心

MECOF公司成立于1947年,位于意大利热那亚附近,是一家有着70年历史的机床制造商,公司在汽车、模具、航空航天、铁路和机械行业的 伙伴中赢得了良好的声誉。精密、创新和可靠性是MECOF品牌的标志。现在归入奥地利EMCO集团。奔驰,宝马,大众,福特,法拉利,奥迪,SERMO,MUERDTER…都是MECOF的大用户,即使在机床行业发达的日本也有使用MECOF机床(本田)。 近年来,随着中国汽车行业突飞猛进的发展,MECOF公司十分看重中国市场,已经成功销售给海尔模具(奥迪A6L模具主要供应商)4台大型五轴联动设备,五粮液普什模具2台重型五轴联动模具加工设备,上海大众1台五轴联动和2台3+2模具加工设备。 富信国际贸易有限公司是MECOF公司在中国的代理,买MECOF就是买放心!我们公司有多名资深的MECOF授权工程师协助MECOF工程师进行安调现场协调和使用维护培训,并且在用户今后的使用中以最快最及时专业的服务,让该设备为用户创造最大效益!
大型落地卧式加工中心
ECOMILL
-X axis: from 6000 mm and more
-Y axis: 1300 mm
-Z axis: 2500 mm
-Max. power spindle motor: 60 kW (S1)
-Max. torque spindle motor: 600 Nm (S1)
-Axes feed rate: 30 m/min
ECOMILL PLUS
X axis: from 6000 mm and more
Y axis: 1600 mm
Z axis: 3000 mm
Max. power spindle motor: 60 kW (S1)
Max. torque spindle motor: 600 Nm (S1)
Axes feed rate: 30 m/min
MECMILL
X axis: from 6000 mm and more
Y axis: 1600 mm
Z axis: 3500 mm
Max. power spindle motor: 40 kW (S1)
Max. torque spindle motor: 1200 Nm (S1)
Axes feed rate: 30 m/min
MECMILL PLUS
X axis: from 6000 mm and more
Y axis: 1600 - 1800 mm
Z axis: 4000 - 5000 mm
Max. power spindle motor: 40 kW (S1)
Max. torque spindle motor: 1200 Nm (S1)
Axes feed rate: 25 m/min
五轴联动立式加工中心
UMILL 1500/1800
X axis travel: 1800 mm
Y axis travel: 2150 mm
Z axis travel: 1250 mm
Axes feed rate: 60 m/min
龙门加工中心
LINEARMILL
X axis: from 2500 mm and more
Y axis: 2200 - 3000 mm
Z axis: 1000 - 1500 mm
Axes feed rate: 100 m/min

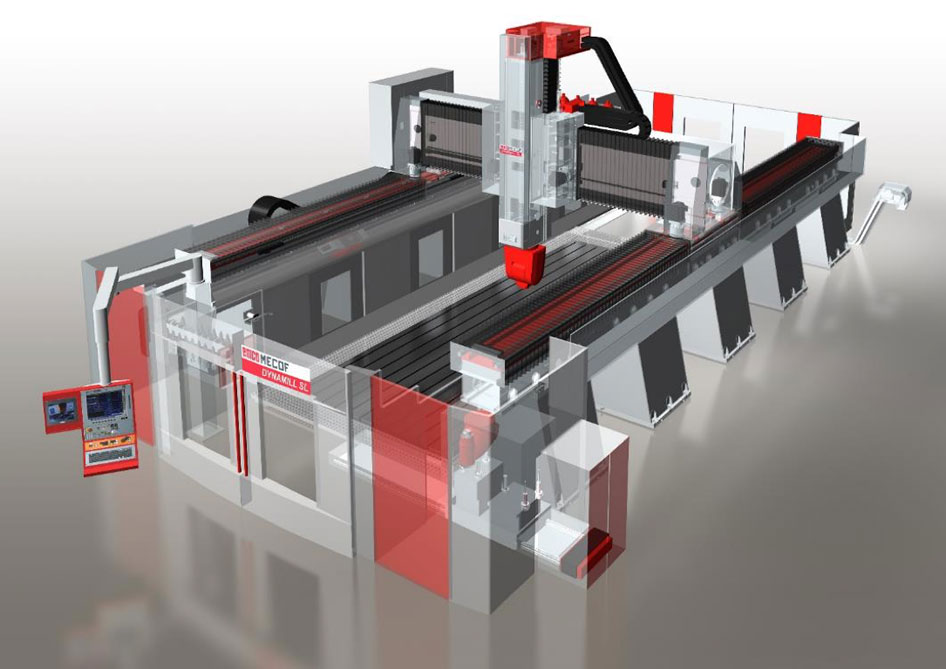

DYNAMILL
X axis: from 4550 mm and more
Y axis: 3000 - 4000 mm
Z axis: 1500 - 2000 - 2500 mm
Max. drive power: 60 kW (S1)
Max. drive torque: 600 Nm (S1)
Axes feed rate: 40 m/min

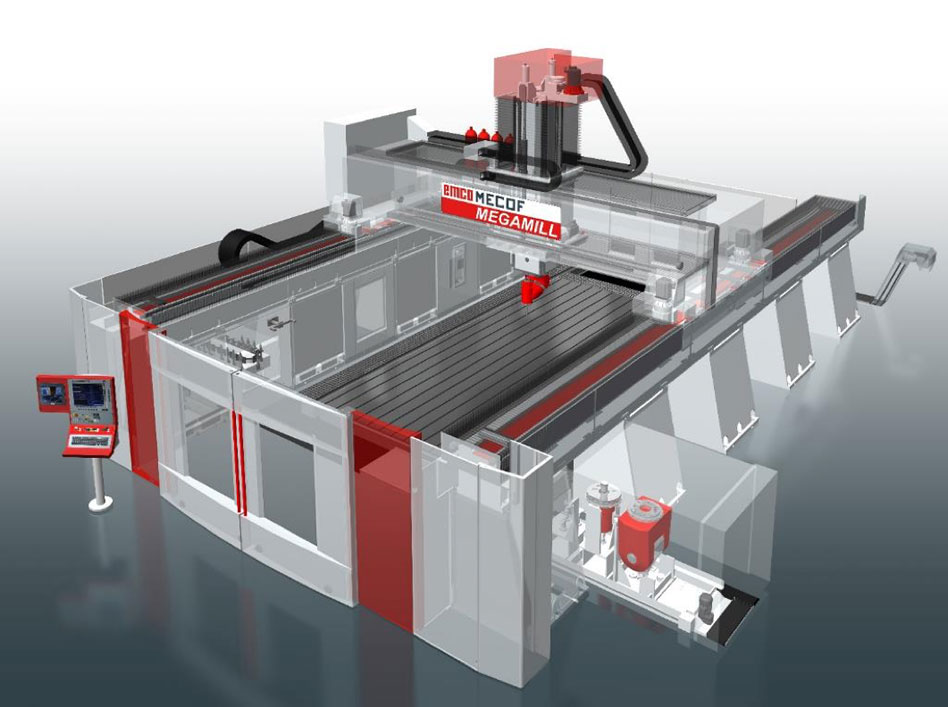

MEGAMILL
X axis: from 7500 mm and more
Y axis: 4000 - 5000 - 6000 - 7000 mm
Z axis: 1500 - 2000 mm
Max. drive power: 40 kW (S1)
Max. drive torque: 1200 Nm (S1)
Axes feed rate: 30 m/min

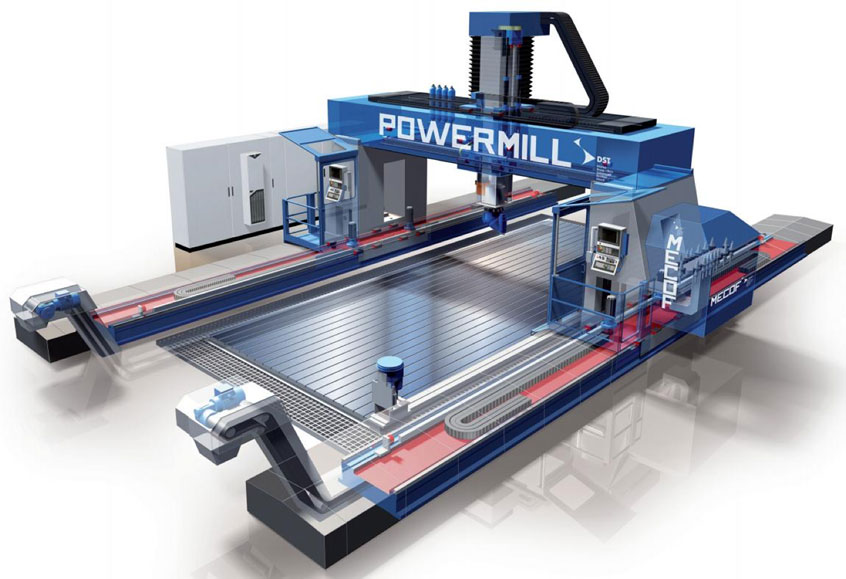

POWERMILL
X axis: from 6000 mm and more
Y axis: 4000 - 5000 - 6000 - 7000 mm
Z axis: 1500 - 2000 mm
Max. drive power: 40 kW (S1)
Max. drive torque: 1200 Nm (S1)
Axes feed rate: 30 m/min
